Berner ARD12-2060E

Description

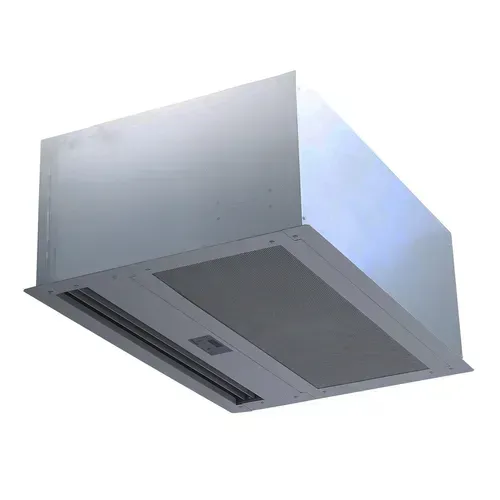

The Berner ARD12-2060E is a high-performance air curtain designed for architectural applications. This recessed model measures 60 inches in length and features electric heating for enhanced comfort. Equipped with two 1/2 hp motors, it offers ten speed settings to optimize airflow according to your needs. The hinged white aluminum bottom access panel allows for easy maintenance and installation. Suitable for mounting heights of up to 12 feet, it delivers an impressive 28kW of heating power. This product is cULus certified and proudly made in the USA, ensuring quality and reliability.

Options

Toggle disconnects

Toggle disconnect (contact factory for part numbers and pricing)

Electrical accessories

Handheld Infrared Remote Control, for use with Intelliswitch +$95.24 Wi-Fi Controller – Factory Installed (add WCA to model #), enables wireless control of the air curtain(s) via the Berner App. NOTE: Requires on-site, secure Wi-Fi connection (provided by others), the Berner App – allows air curtain(s) to be programmed & operated via smart phone +$276.01 Intelliswitch Display Kit – Remote Mounted Kit, with 20' cable for LED display +$111.53 Serial Connection Cable, for programming multiple air curtains from a single Intelliswitch +$140.55

Thermostat

Thermostat, 2-pole, remote mounted +$43.80

Finishes

Custom painted hinged bottom cover finish +$196.06 SS Stainless steel hinged bottom cover finish +$244.44 White aluminum hinged bottom cover finish, standard

What is included

Warranty: Two year parts warranty (heated units)
Special freight note: If special freight fees are requested, (See below) all applicable fees will be added to the invoice; fees subject to change; contact factory for addition information.
Freight Note: NOTE:Contact Name / Phone Number and/or Email required at time of order

Voltage

208/60/3-ph -$65.18 208v/60/1-ph 220v/50/1-ph 240/60/3-ph -$65.18 240v/60/1-ph 380V/50/3-ph (contact factory for price) 480/60/3-ph +$294.35 600/60/3-ph +$294.35

Reviews

There are no reviews yet for this product.

Brand	Berner
Horsepower	1/2 HP
Made in	USA
Certifications	cULus
Heat Type	Electric Heat
Number of Motors	2
Speeds	10
Series	Architectural Series
Mounting	Mounting Heights up to 12'
Style	Recessed
Length (in)	60" Long
Weight	209.00
