Jade Range JTRH-12G-4-36

Description

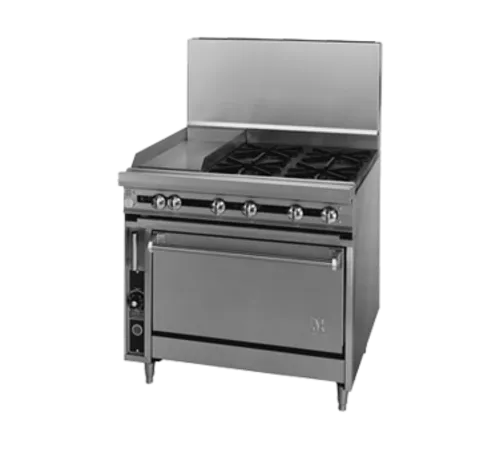

The Jade Range JTRH-12G-4-36 is a robust 36" heavy-duty gas range designed for high-performance cooking. It features four powerful 35,000 BTU open burners, providing ample heat for various cooking tasks. The integrated 12" griddle offers additional cooking versatility, perfect for preparing breakfast items or sautéing vegetables. Manual controls allow for precise heat adjustments, while the standard oven is equipped with two chrome-plated racks and a stainless steel oven liner for easy cleaning and durability. The range includes a 6" plate shelf for convenient access to your dishes and ingredients. Built with a sturdy construction, the front, sides, stub back, and bottom are all made of stainless steel, ensuring longevity and resistance to wear. The 6" adjustable legs provide stability on uneven surfaces, and the unit boasts a total output of 200,000 BTU. Certified by CSAus and NSF, this range meets rigorous safety and sanitation standards, making it an ideal choice for commercial kitchens.

Options

Oven rack

Additional oven rack +$234.82

Gas connections

1" Rear connection 1-1/4" Front manifold, cap & cover rear gas connection 3/4" Rear connection, standard

Quick disconnect hoses

36" Long x 3/4" flex hose with quick disconnect +$765.82 48" Long x 3/4" flex hose with quick disconnect +$820.10

Oven base option

Convection in lieu of standard oven, add "C" to model no. +$4,270.42

Lift-off griddle plate

Lift-off griddle plate, 12" x 1/2" thick +$735.14 Lift-off Griddle plate, 18" x 1/2" thick +$902.70 Lift-off Griddle plate, 24" x 1/2" thick +$1,070.26

Outside USA

NOTE: For application or installation outside of the USA & Canada (contact factory for quote)

Plate shelf options

Plate Shelf, solid, 10", for Titan™ & Bistro™, sold per foot +$489.70 Plate Shelf, solid, 12", for Titan™ & Bistro™, sold per foot +$649.00 Plate Shelf, solid, 8", for Titan™ & Bistro™, sold per foot +$423.62 Plate Shelf, solid, 4", for Titan™ & Bistro™, sold per foot +$297.36 Plate Shelf, 6", Waldorf style, for Titan™, sold per foot +$661.98 Plate Shelf, 8", Waldorf style, for Titan™, sold per foot +$719.80 Plate Shelf, 10", Waldorf style, for Titan™ & Bistro™, sold per foot +$778.80

Common battery/unitization

Battery/Unitization charge, includes 1-1/4" front manifold, common plate shelf and common stub back (when applicable), per unit. Required when ordered with any unit that will be connected by front manifold to an adjacent unit (even if equipment is shipped loose) +$423.62

Top options

"S" grates, priced per ft +$333.94 Stainless steel work top in lieu of (2) open burners, per section

Correctional package

Correctional Package: Stainless steel lockable control panels, correctional fasteners & stainless steel enclosed security back screen +$1,369.98

Warranty

NOTE: See model "WARRANTY SHEET" for more warranty information Two years part & labor warranty - Includes Five year warranty parts on oven door (parts only) & Ten year warranty on range frame (parts only), standard One year parts & NO labor warranty on international orders

Stainless steel panel options

SSP-36 stainless steel back +$828.36 SSP-36 stainless steel bottom +$828.36

Gas types

LP gas, specify if elevation over 2000 ft. Natural gas, specify if elevation over 2000 ft.

Griddle options

Common griddle plate to span two ranges 72" max. +$1,339.30 Thermostatically controlled griddle, add "T" after G in model no., price per ft. +$670.24 Grooved griddle, add "G" after G in model no., entire griddle surface, price per ft. +$1,503.32

What is included

Construction: NOTE: All units are fully welded with heavy duty construction, stainless steel sides, front and top are standard
Note: NOTE: Stainless steel tray bed (burner box), deflectors, tray guides and drip tray/grease can standard

Reviews

There are no reviews yet for this product.

Brand	Jade Range
Certifications	NSF
Range Base Style	Standard Oven
Installation Type	Freestanding
Control Type	Manual
Number of Burners	3 - 5
Quantity of Burners	4 Burners
BTU	200,000 BTU
Range Configuration	(1) 12" Griddle
Width (in)	36.00
Height (in)	36.50
Depth (in)	38.00
Weight	725.00
