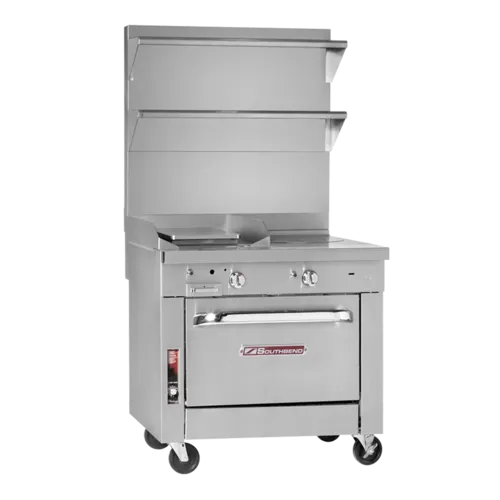

Southbend P32A-XG

Description

The Southbend P32A-XG is a 32" heavy-duty gas range designed for high-performance cooking in commercial kitchens. It features two powerful 45,000 BTU open burners and a 16" griddle, providing versatile cooking options. The range is equipped with manual controls and a battery spark ignition for reliable operation. The convection oven, with a total output of 175,000 BTU, includes three racks for optimal cooking capacity. Constructed with a stainless steel front and sides, it ensures durability and easy cleaning. The 6" adjustable legs allow for customizable height, making it suitable for various kitchen setups. This range meets cCSAus, CSA Flame, CSA Star, and NSF standards, ensuring safety and quality for professional use.

Options

Grate option

Convert welded steel grates to cast iron grates, per 2 burners (DEDUCT) -$210.76

Continuous front rail & belly bar

7.25" Front rail (to match old style sectional units) Continuous front rail (108" maximum length, priced per inch, not available across spreader top units) +$10.69 Extended plate shelf with cutting board, per foot +$430.06 Extended plate shelf without cutting board, per foot +$279.16 Square belly bar mounts on 7.25" front rail, per foot +$343.28 Front rail with cutouts for sauce pans +$519.84

Flame failure & spark ignition

Battery spark ignition for open top burner section(s) +$200.92 Flame failure for open top burner section(s) +$383.04

Range depth

Change a 36" deep range to 42" deep +$987.10

Spreaders

Special size cabinets up to 72" wide, use price of next largest size and add +$362.95

Top option in lieu of open burners

18" Stainless steel work top per 18" (2) burner section (must specify location) -$168.01 16" Stainless steel work top per 16" (2) burner section (must specify location) -$168.01

Top placement

Griddle on left, open burners on right Open burners on left, griddle on right

Oven options

Electric oven pilot ignition, in lieu of standard Extra chrome plated oven rack +$165.02 Stainless steel Oven interior +$581.40

Gas types

LP gas

Prison options

Control knob cover +$684.43 Control panel cover (oven base only) +$274.88 Correctional fasteners +$274.88 Door locking clasp +$274.88

Stainless steel options

Stainless steel burner box bottom, sides, and drip tray, standard Stainless steel exterior bottom, standard Stainless steel oven burner box bottom & sides, standard Stainless steel oven interior (bottom remains porcelain) +$581.40 Stainless steel rear on range, standard

Extended warranty

Additional one year warranty (sectional) +$769.00

Mounting options

Bolt-down/flanged feet in lieu of std. legs +$513.86 Casters, 2 locking & 2 standard, in lieu of legs +$430.06

What is included

Shipping location: Domestic Shipping, inside of North America (Contact factory for price)
Standard warranty: Standard (1) year limited parts and labor warranty (reference warranty document for details)

Voltages

115v/60/1-ph, 5.9 amps, cord & plug 208v/60/1-ph, (190 to 219 volts) hard wired, contact factory for information 208v/60/3-ph, (190 to 219 volts) hard wired, contact factory for information 236v/60/1-ph, (220 to 240 volts) hard wired, contact factory for information 236v/60/3-ph, (220 to 240 volts) hard wired, contact factory for information

Reviews

There are no reviews yet for this product.

Brand	Southbend
Burner Style	Grates
Certifications	NSF
Range Base Style	Convection Oven
Installation Type	Freestanding
Number of Burners	1 - 2
Total BTU	131000 - 224000
Control Type	Manual
Burner Type	45,000 BTU open burners
BTU	45,000 BTU
Heat	Gas
Number of Ovens	1
Width (in)	32
Height (in)	41
Depth (in)	40.25
Weight	800.00
